Overview
Essential details
- Place of Origin:
-
Shanghai, China
- Brand Name:
-
Flower Medical
- Model Number:
-
FDY-2A
- Power Source:
-
Electric
- Warranty:
-
1 Year
- After-sale Service:
-
Online technical support
- Material:
-
Metal, Steel
- Shelf Life:
-
3 years
- Quality Certification:
-
ce
- Instrument classification:
-
Class II
- Safety standard:
-
EN 149 -2001+A1-2009
- Name:
-
Electric Hydraulic Operating Table
- Length:
-
2170mm
- Width:
-
500mm
- Adjustable range of height:
-
690~1100mm
- Reversed Trendelenburg/Trendelenburg:
-
+30/-30
- Lateral Tilt(Left/Right):
-
+25/-25
- Head rest(up/down):
-
+45/-90
- Foot Plate(up/down&horizontal position):
-
+20/-90
- Leg board folding downward/outward angle:
-
+90/-40
- External Kidney bridge elevation:
-
120mm

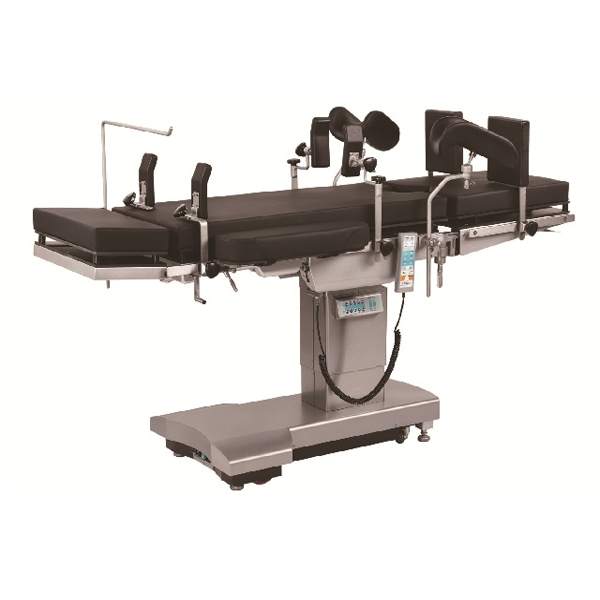

Name | Electric Hydraulic Operating Table | ||||||
Model | FDY-2A | ||||||
Length | 2170mm | ||||||
Width | 500mm | ||||||
Adjustable range of height | 690~1100mm | ||||||
Reversed Trendelenburg/Trendelenburg | +30˚/-30˚ | ||||||
Lateral Tilt(Left/Right) | +25˚/-25˚ | ||||||
Head rest(up/down) | +45˚/-90˚ | ||||||
Foot Plate(up/down&horizontal position) | +20˚/-90˚ | ||||||
Back board folding upward/downward angle | +75˚/-15˚ | ||||||
Leg board folding downward/outward angle | +90˚/-40˚ | ||||||
External Kidney bridge elevation | 120mm | ||||||
Power supply | 220V,50Hz/110V,60Hz | ||||||
Volume | 1405×725×885mm | ||||||
Supply Operations | Suitable for surgical operations for the head,neck,thorax,perineum,abdomen,extremities; gynaecology and obstetrics,urology department, Ent surgery | ||||||
Send Enquiry Here ~
Lucy(Export Manager) : Mobile/WhatsApp/WeChat:+86 15039025582
Electric Type
FD-IA
FD-12F
FD-4
Electric Hydraulic Type
FDY-12D
FDY-2A
FDY-12C
Manual Type
FY-3001
FY-3008D
FY-3008H
Send Enquiry Here ~
Lucy(Export Manager) : Mobile/WhatsApp/WeChat:+86 15039025582
Size | 1400*780*930 mm |
Weight | G.W.:230 kg |
Package Details | Wooden case |
About Us
Our company name is Shanghai Flower Medical Equipment Co.,Ltd . sub company name is Shanghai V-ON Industry Development Co.,Ltd. We are mainly focus on Medical gas pendant, Operating light. Operation Table, Hospital Bed and furniture in Shanghai China . Both companies are established in the year of 2010. Foundation amount is 10,000,000 RMB.
